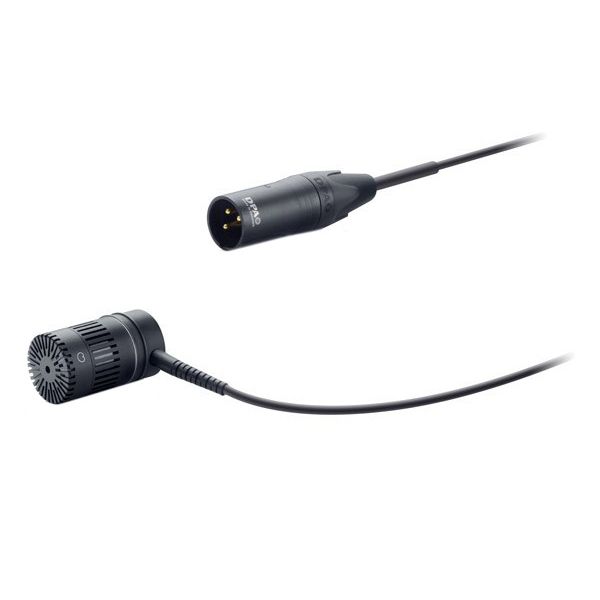

DPA 4011ES

DPA 4011ES Cardioid Mic Side Cable, XLR, Directional pattern: Cardioid, Principle of operationPressure gradient, Cartridge type: Pre-polarized condenser, Frequency response: 20 Hz - 20 kHz, Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 20 kHz, Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa, Equivalent noise level, A-weightedTyp. 18 dB(A) re. 20 µPa (max. 20 dB(A)), Equivalent noise level, ITU-R BS.468-4Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting), Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak, Dynamic rangeTyp. 121 dB, Max. SPL, THD 10%159 dB SPL peak, Switchable attenuator, filters etc.0 dB / -20 dB, Rated output impedance: 200 O, Minimum load impedance: 2, Cable drive capability100 m (328 ft), Output balance principle: Impedance balancing with Active Drive, Common mode rejection ratio (CMRR)> 60 dB, Power supply (for full performance)P48 (Phantom Power), Current consumption2.8 mA ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase, Weight: 158g, Microphone diameter19 mm, Capsule diameter: 19 mm, Microphone length: 170mm, Maximum output voltage, RMS> 5 V, Polarity+V at pin 2 for positive sound pressure, Temperature range-40°C to 45°C (-40°F to 113°F), Relative humidity (RH)Up to 90%, Matching tolerance (frequency response and sensitivity): ±1 dB, Phase deviation for kit< 10°, Colors: Matte black
